Steam Turbine Control & Protection
Related Services
Projects Service Consulting Training Product Repair
Related Case Study

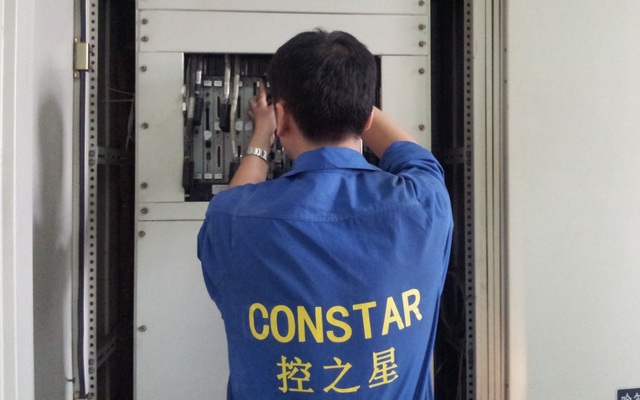

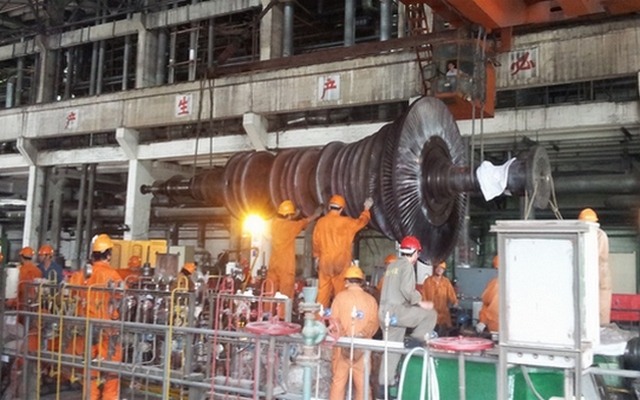

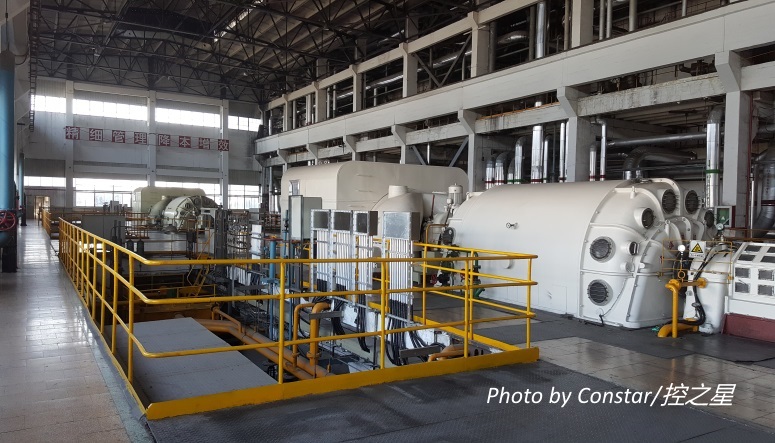

SINOPEC Jinling Petro Unit1 is a 60MW co-generation genset, which was installed in 1990’s by Shanghai Steam Turbine Works. The turbine was originally installed with hydraulic governors regulating turbine power and two extraction steam pressures. Over decades of operation, the hydraulic control system sufferred leaking, friction and deteriorated accuracy.
Constar upgraded the turbine hydraulic governor with Woodward Micronet TMR control system in year 2002. The upgraded DEH is TMR(Triple Module Redundancy) in hardware and powered with Ratio/Limiter algorithm. The upgraded control system not only improved reliability and accuracy, but also made operation more friendly. Since installation, the genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Control System: Micronet TMR
- Application Type: DEH Upgrade
- Date: Year 2002
SINOPEC Jinling Petro Unit2 is a 60MW co-generation genset, which was installed in 1990’s by Shanghai Steam Turbine Works. The turbine was originally installed with hydraulic governors regulating turbine power and two extraction steam pressures. Over decades of operation, the hydraulic control system sufferred leaking, friction and deteriorated accuracy.
Constar upgraded the turbine hydraulic governor with Woodward Micronet TMR control system in year 2002. The upgraded DEH is TMR(Triple Module Redundancy) in hardware and powered with Ratio/Limiter algorithm. The upgraded control system not only improved reliability and accuracy, but also made operation more friendly. Since installation, the genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Control System: Micronet TMR
- Application Type: DEH Upgrade
- Date: Year 2003
SINOPEC Yizheng Petro Unit3 is a 60MW co-generation genset, which was installed in 1990’s by Shanghai Steam Turbine Works. The turbine was originally installed with hydraulic governors regulating turbine power and two extraction steam pressures. Over decades of operation, the hydraulic control system sufferred leaking, friction and deteriorated accuracy.
Constar upgraded the turbine hydraulic governor with Woodward Micronet TMR control system in year 2003. The upgraded DEH is TMR(Triple Module Redundancy) in hardware and powered with Ratio/Limiter algorithm. The upgraded control system not only improved reliability and accuracy, but also made operation more friendly. Since installation, the genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Control System: Micronet TMR
- Application Type: DEH Upgrade
- Date: Year 2003

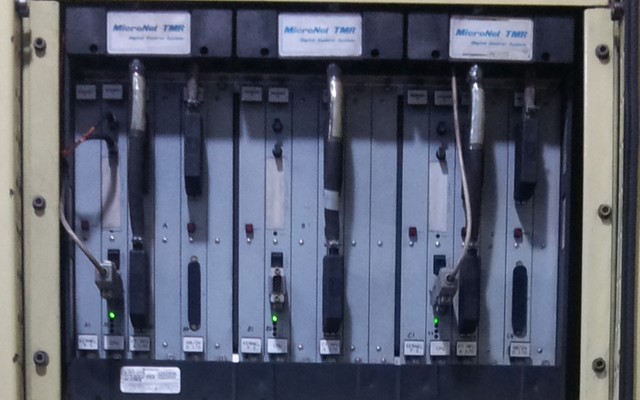

Banpu Tangshan Unit2 is a 50MW co-generation genset installed in 1990’s by Harbin Steam Turbine Works. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm and the TM-25 actuator that is the core of servo system. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 50MW
- Turbine Manufacture: Harbin Steam Turbine Works
- Control System: Micronet TMR
- Application Type: DEH Upgrade
- Date: Year 1997

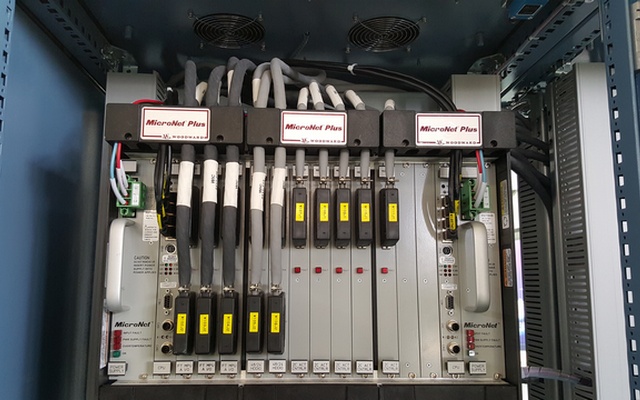

CNOOC Haihua Unit5 is a 25MW co-generation genset installed in year 2003 by Beijing Heavy Machine Works. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm and the TM-25 actuator that is the core of servo system. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 25MW
- Turbine Manufacture: Beijinng Heavy Machine Works
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2003

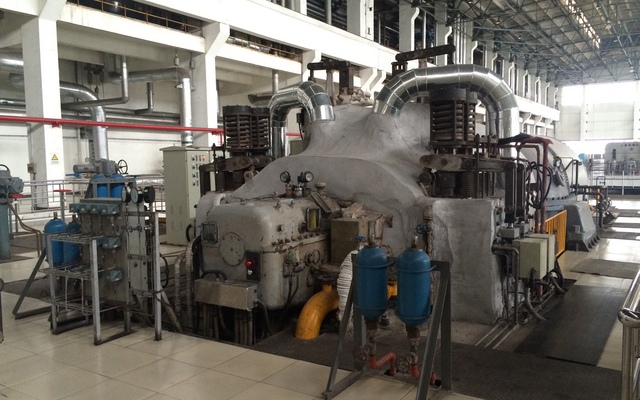

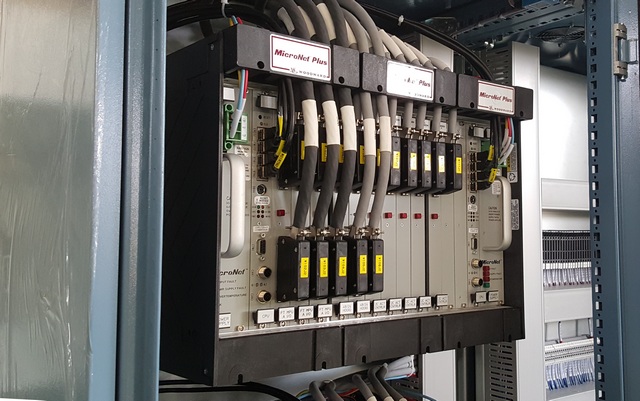

Meishan Steel Unit4 is a 60MW double automatic extraction co-generation genset installed in year 2004 by Shanghai Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2004
Meishan Steel Unit6 is a 60MW double automatic extraction co-generation genset installed in year 2006 by Shanghai Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2006

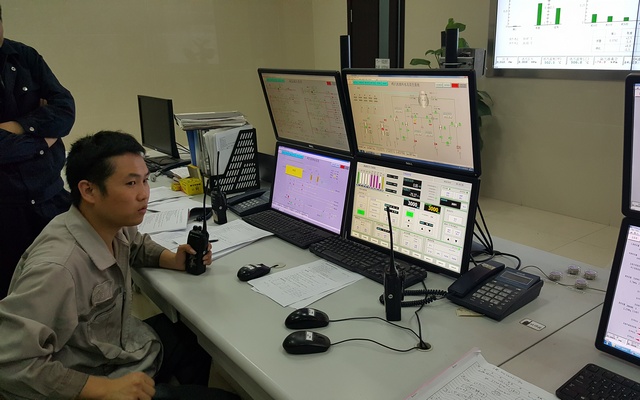

Sinpu Chemical Unit1 is a 60MW double automatic extraction co-generation genset installed in year 2005 by Shanghai Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2005

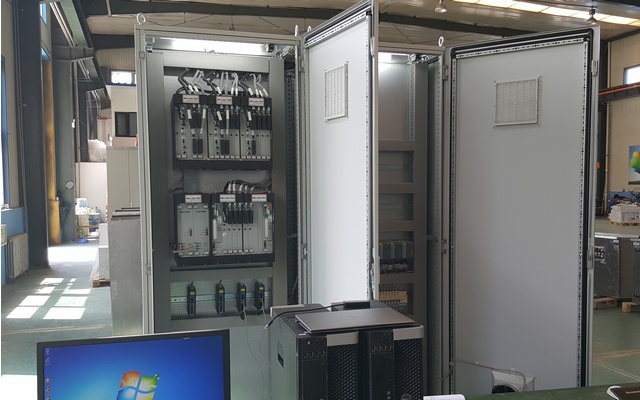

Sinpu Chemical Unit2 is a 60MW double automatic extraction co-generation genset installed in year 2006 by Shanghai Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power and two extraction pressures. The genset has been working stably and safely for almost twenty years, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Double Automatic Extration Turbine
- Rated Power: 60MW
- Turbine Manufacture: Shanghai Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2006
Sinpu Chemical Unit3 is a 50MW back pressure & extraction co-generation genset installed in year 2015 by Nanjing Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power, extraction pressure, and exhaust pressure. The genset has been working stably and safely since installation, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Extration & Exhause Pressure Turbine
- Rated Power: 50MW
- Turbine Manufacture: Nanjing Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2015

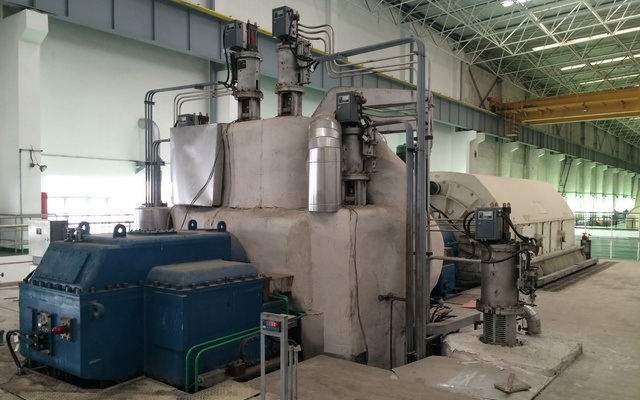

Sinpu Chemical Unit4 is a 50MW back pressure & extraction co-generation genset installed in year 2016 by Nanjing Steam Turbine Works, the turbine is running with 14MPa hydraulic oil system. Constar supplied the turbine control system including the Woodward Micronet TMR control system with Ratio/Limiter algorithm. DEH system controls speed, power, extraction pressure, and exhaust pressure. The genset has been working stably and safely since installation, demonstrating the strong engineering capability of Constar.
- Turbine Type: Co-Generation Genset, Extration & Exhause Pressure Turbine
- Rated Power: 50MW
- Turbine Manufacture: Nanjing Steam Turbine Works
- Governor Oil: 14MPa, High Pressure
- Control System: Micronet TMR
- Application Type: DEH, New Installation
- Date: Year 2016

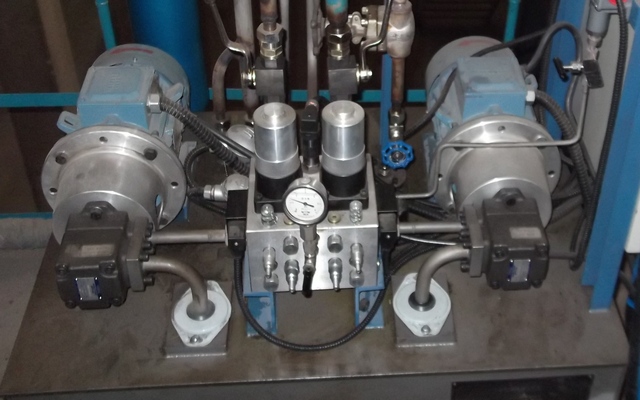

SINOPEC Shijiazhuang Unit2 is a single extraction steam turbine manufactured by Nanjing Steam Turbine Works. The turbine was installed originally with hydraulic governor, and it was experienced an unsuccessfully upgrade to digital control by other company in 2000. In 2015, Constar successfully retrofit control system with 505E controller and specially designed hydraulic system. The control performance was very satisfied and the turbine has been running stably and safely since then.
- Turbine Type:Single Extraction Steam Turbine
- Rated Power:25MW
- Turbine Manufacture:Nanjing Steam Turbine Works
- Control System:505E
- Project Type:DEH System
- Project Date:Year 2015
TIANWAN Nuclear Power Unit3 is a 1000MW nuclear steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine ETS protection system using Woodward’s excellent Micronet TMR triple modular redundant control system and advanced turbine protection algorithms, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Nuclear Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Micronet
- Application Type: Turbine Protection System
- Date: Year 2017
TIANWAN Nuclear Power Unit4 is a 1000MW nuclear steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine ETS protection system using Woodward’s excellent Micronet TMR triple modular redundant control system and advanced turbine protection algorithms, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Nuclear Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Micronet
- Application Type: Turbine Protection System
- Date: Year 2017
DATANG GAOJING Unit1 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2012
DATANG GAOJING Unit2 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2012
NINGBO Power Unit1 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2014
NINGBO Power Unit2 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2014
CNOOC HAIHUA Unit6 is a co-generation extraction steam turbine manufactured by Beijing Heavy Machine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using a dual redundant PLC system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Single Extraction Steam Turbine
- Turbine Manufacturer: Beijing Heavy Machine Works
- Control System: PLC
- Application Type: Turbine ETS System
- Date: Year 2012
CNOOC HAIHUA Unit7 is a co-generation extraction steam turbine manufactured by Qingdao Jieneng Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using a dual redundant PLC system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Single Extraction Steam Turbine
- Turbine Manufacturer: Qingdao Jieneng Turbine Works
- Control System: PLC
- Application Type: Turbine ETS System
- Date: Year 2012
CNOOC HAIHUA Unit8 is a co-generation extraction steam turbine manufactured by Qingdao Jieneng Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using a dual redundant PLC system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Single Extraction Steam Turbine
- Turbine Manufacturer: Qingdao Jieneng Turbine Works
- Control System: PLC
- Application Type: Turbine ETS System
- Date: Year 2012
HUANENG Lingang Unit is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2014
Zouping Power Unit1 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2014
Zouping Power Unit2 is a combined cycle steam turbine manufactured by Harbin Turbine Works. Constar successfully implemented the turbine independent electrical overspeed protection system using Woodward’s excellent Protech GII triple modular redundant protection system, featuring system reliability, fast response, high control accuracy, and advanced algorithms.
- Turbine Type: Combined Cycle Steam Turbine
- Turbine Manufacturer: Harbin Turbine Works
- Control System: Protech GII
- Application Type: Turbine TMR Overspeed Protection System
- Date: Year 2016
